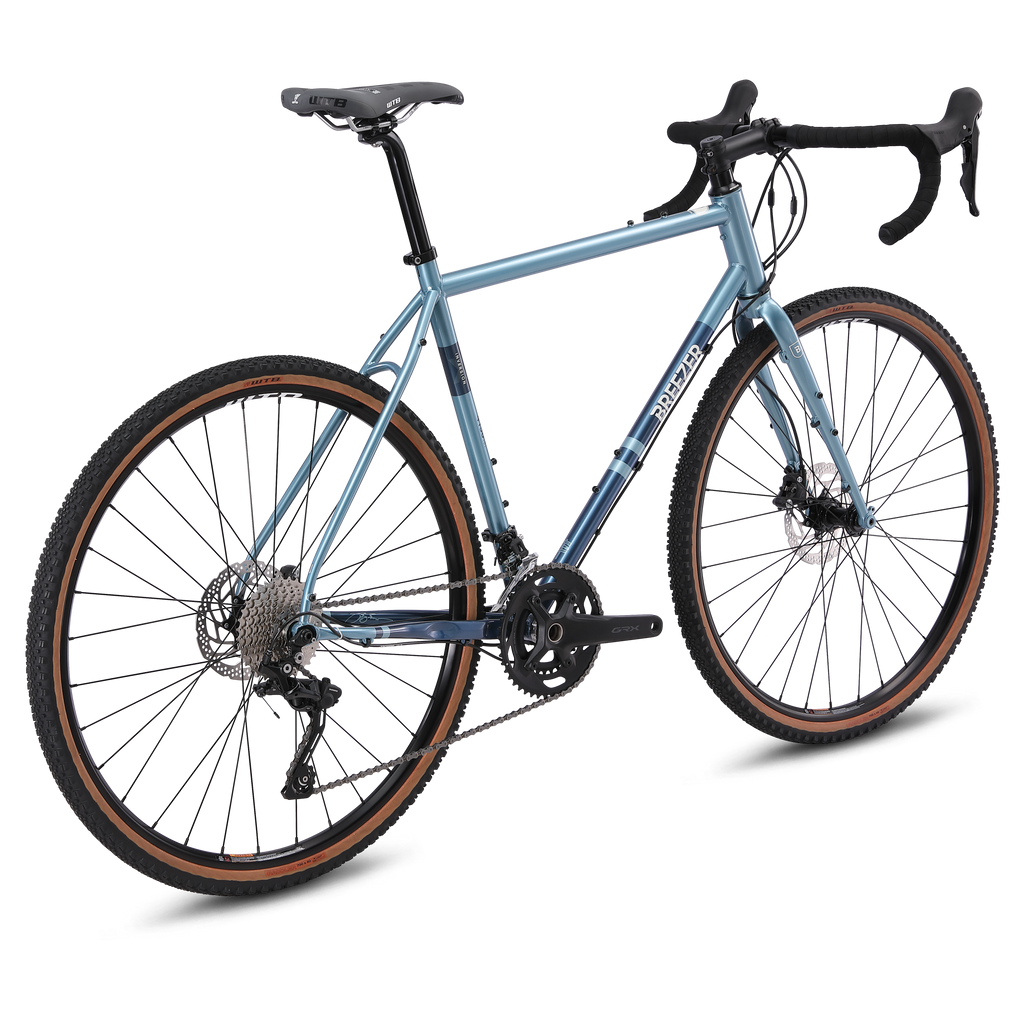

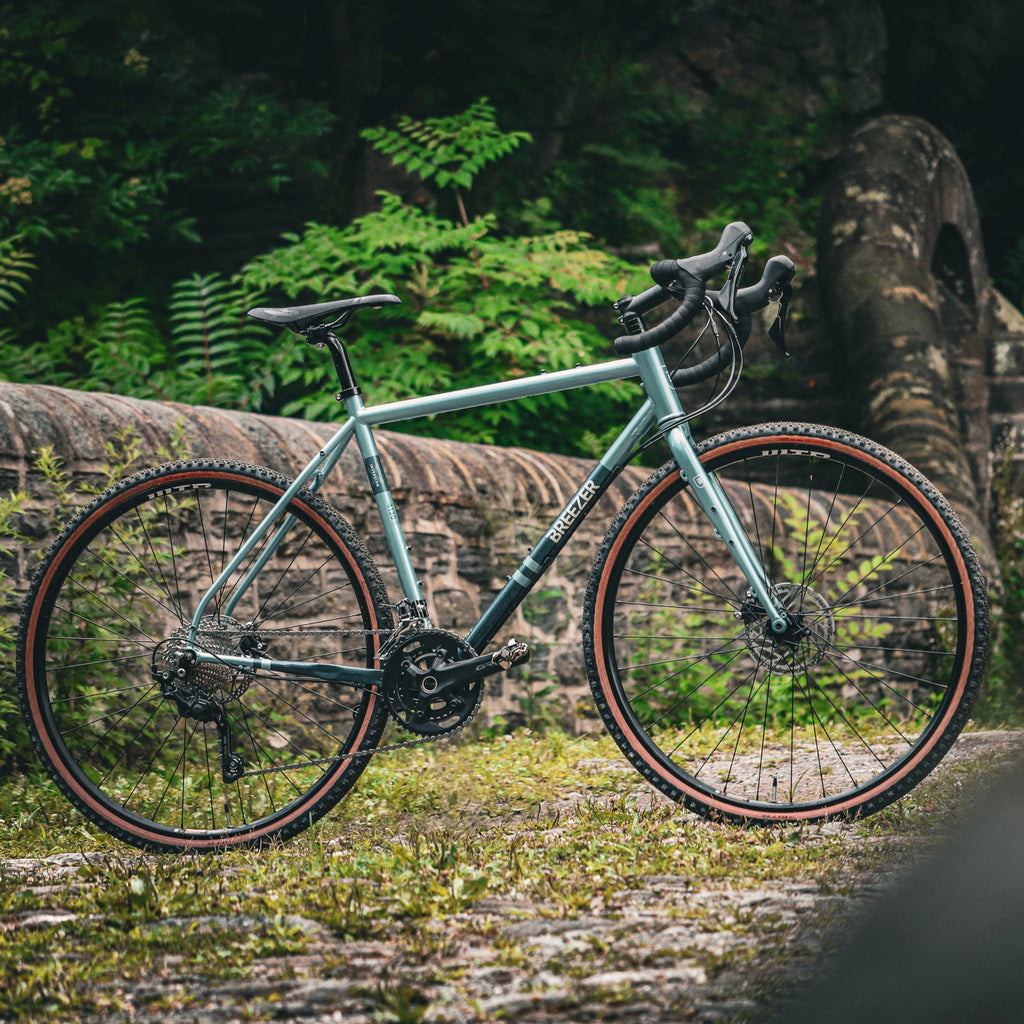

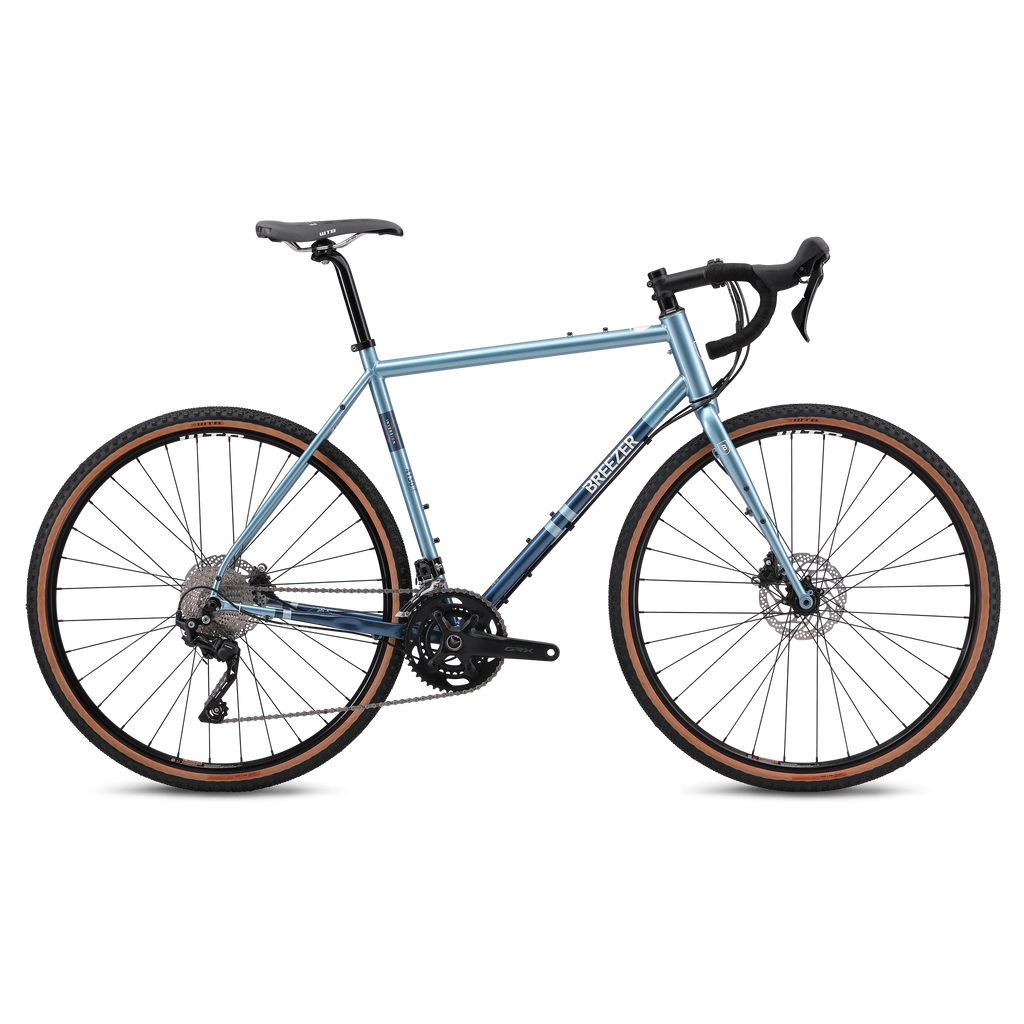

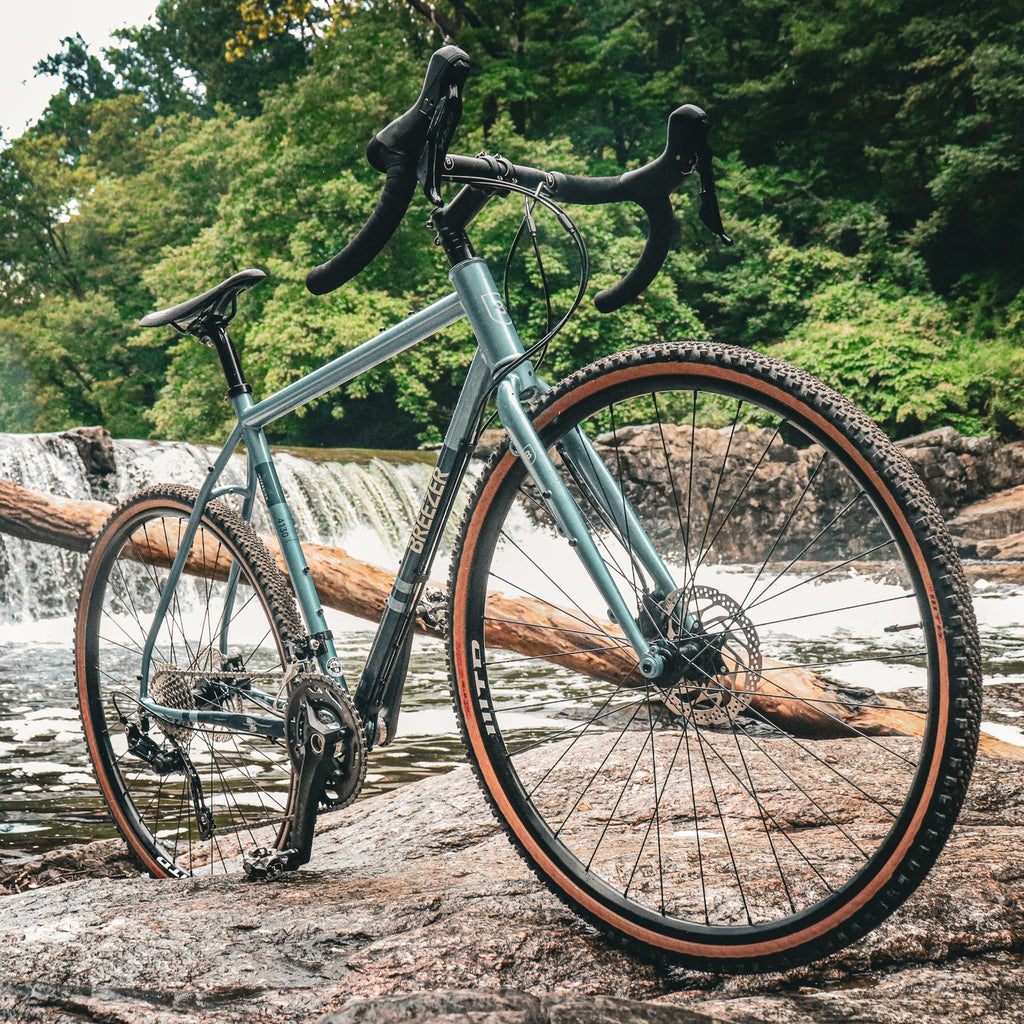

Inversion X Comp
Description
The best part of the ride starts at the end of the pavement, and that's where the Inversion X comes in. A true gravel bike, the Inversion X is designed as a versatile steed for anything from aggressive gravel to daily commuting. With wide tire clearance, a capable frame design that offers high-speed stability and control over technical terrain, plus the comfort and suppleness only found in quality steel, this bike is made for all-day graveling and getting the most out of your drop bar bike.
Features
- 4130 high quality butted steel frame and fork
- External cable routing
- English threaded bottom bracket
- Eyelets for fenders, racks, top tube and fork storage

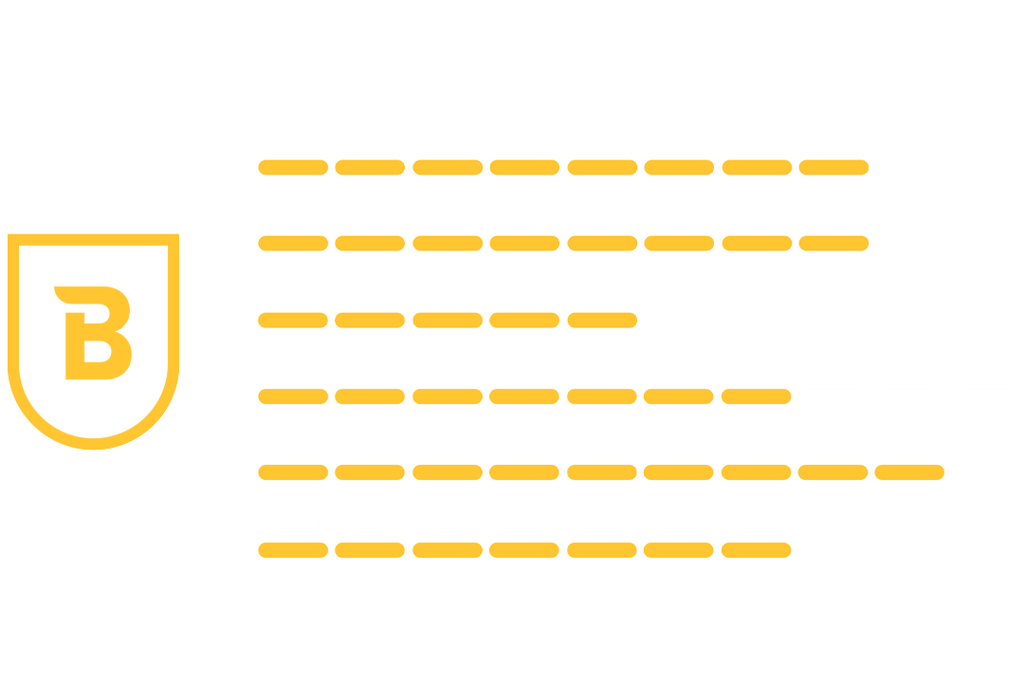

- Geometry that is well suited for gravel, adventure, road, touring, commuting, and cyclocross
- Tire Clearance: 700cx45mm (700x40mm with fender installed), or 650bx47mm
30-Day Return Policy
Ship to Home Return Policy
Item(s) in new, unassembled, unused condition and with all original packaging, hangtags, and parts will be eligible for a refund when returned within 30 days of purchase. Return shipping fees apply.
*More Details
Ship to Store Return Policy
Bicycles can be returned at time of pick-up only. After leaving the store with your assembled bicycle the sale is final. It’s up to the seller you purchased from to initiate the return. Restocking fee may apply.
*More Details
Assembly Instructions
Breezer Bikes ship partially assembled from the factory. We always recommend that a trained mechanic build your bike, but if you follow the assembly video and take your time, you can build the bike yourself.
Watch Assembly Video

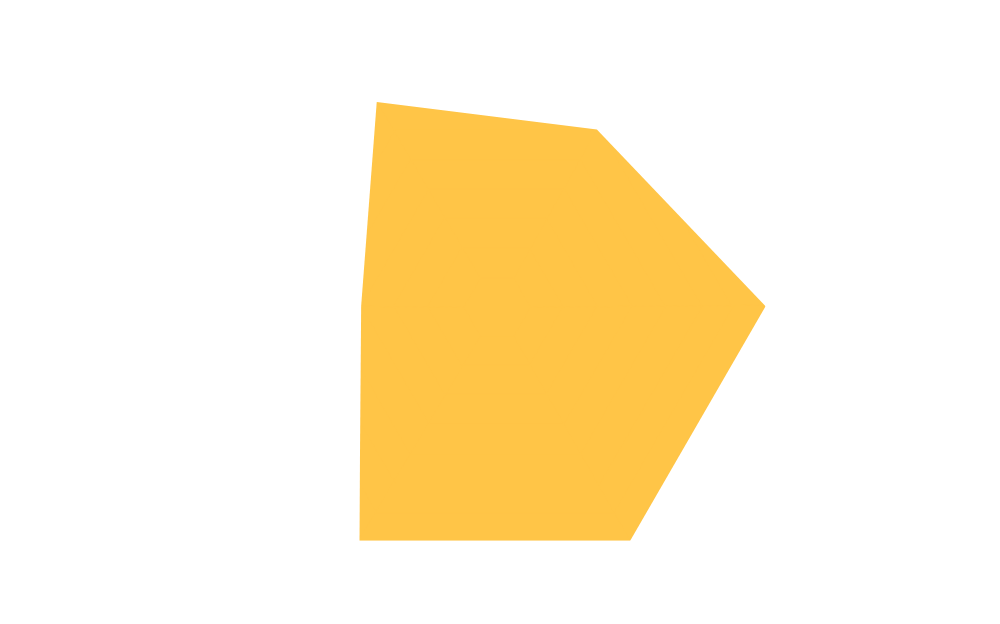

The perfect adventure bike for:
The road rider who doesn’t want to be limited to pavement and is looking to push what their road bike is capable.
Compact Geometry
Joe's compact geometry allows riders to enjoy greater standover clearance for navigating technical terrain, shave weight off the frame, and allow for a wider range of adjustability for riders of different sizes.
Multiple Mounts
Designed to be customized for your adventure Breezer's multi-mount technology allows options for waterbottle cages, racks, and fenders.

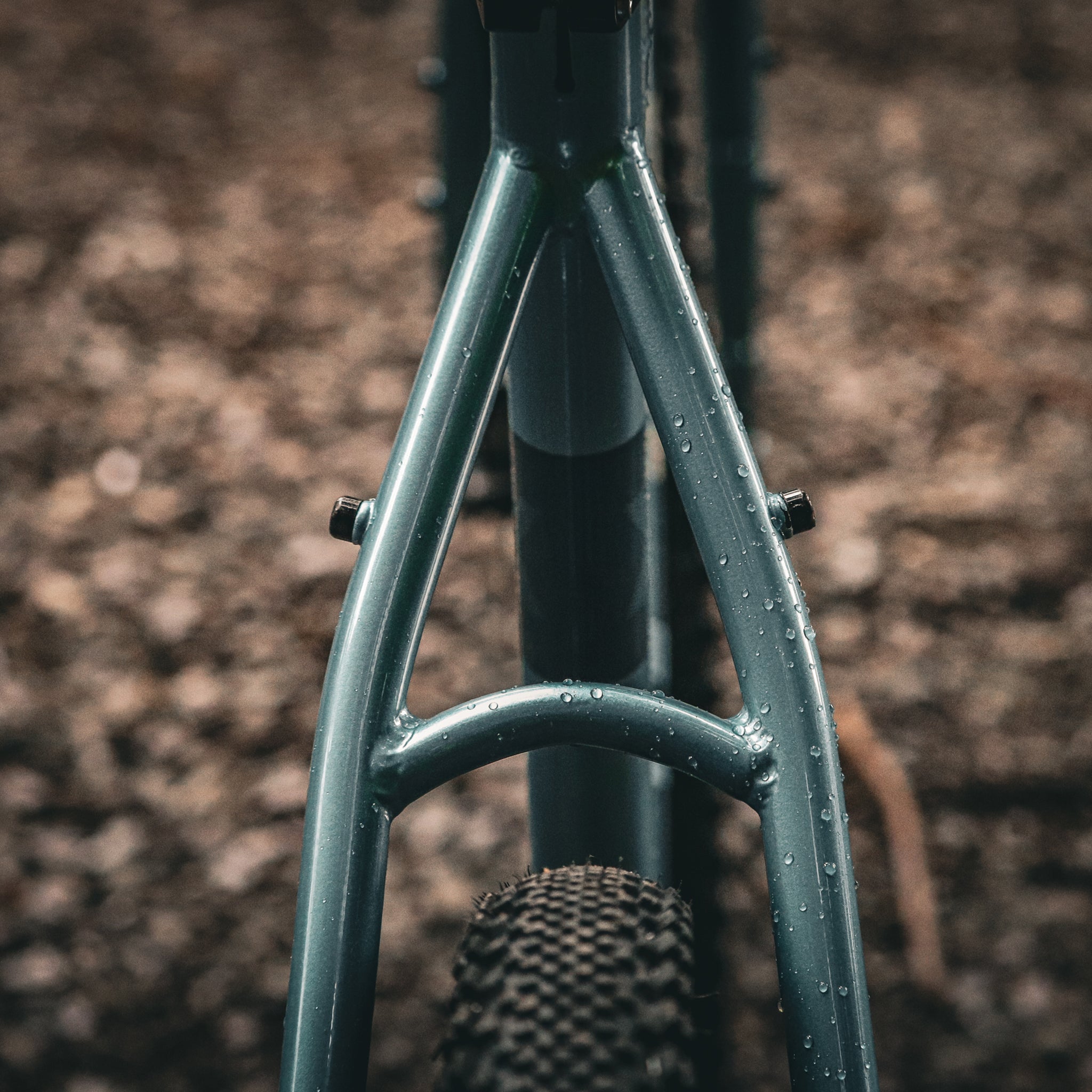

Breeze-In Dropouts
The iconic Breeze-In dropouts create increased strength and ridigity in the rear triangle and offers a lighter weight alternative to standard dropouts.

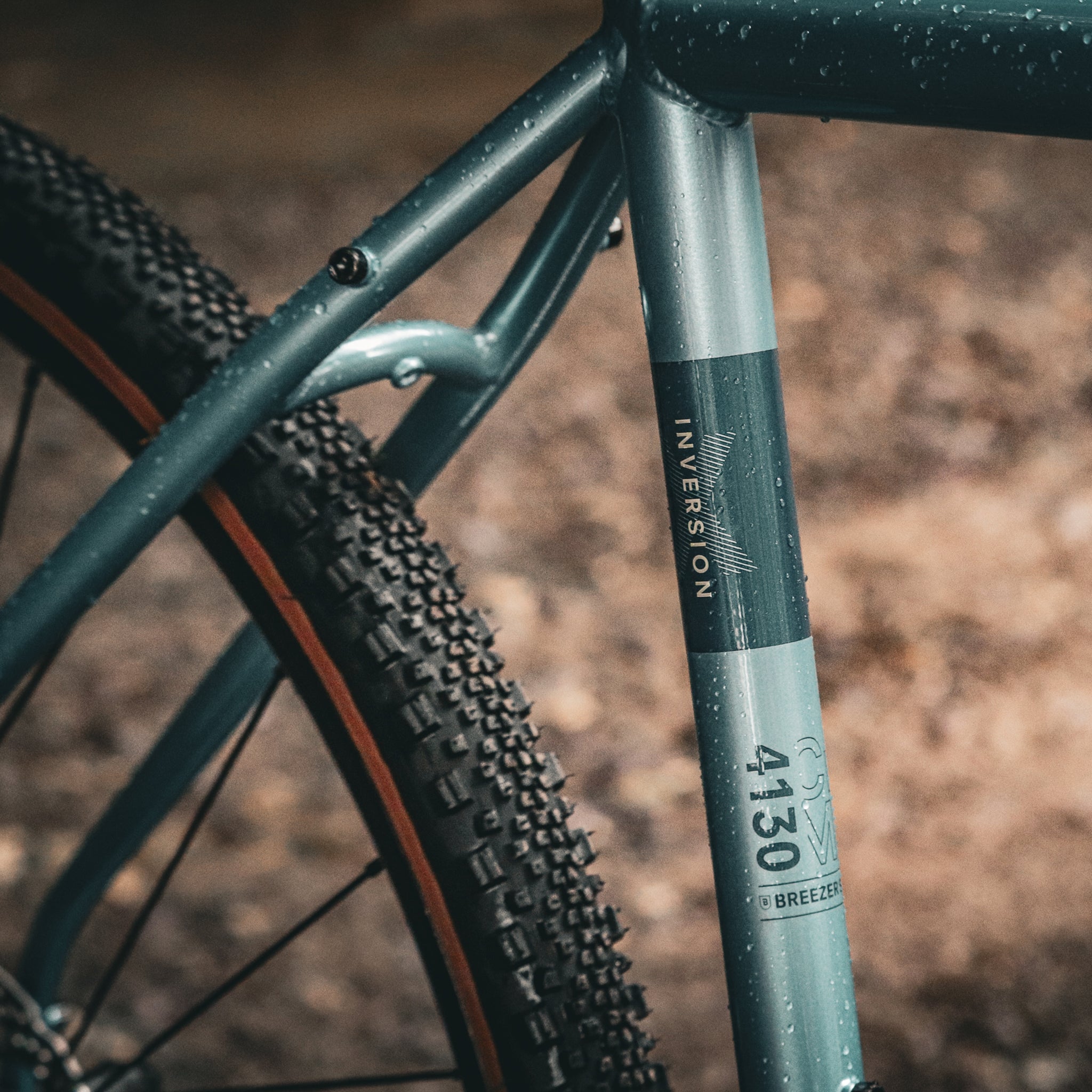

Breezer Steel
The staple material for most Breezer bikes, Breezer Steel 4130 Chromo offers incredible durability, excellent shock-absorbing qualities, and fully-butted tube walls for reduced weight.
Specifications
Sizes | XS(49cm), S(52cm), M(54cm), L(56cm), XL(58cm), XXL(60cm) |

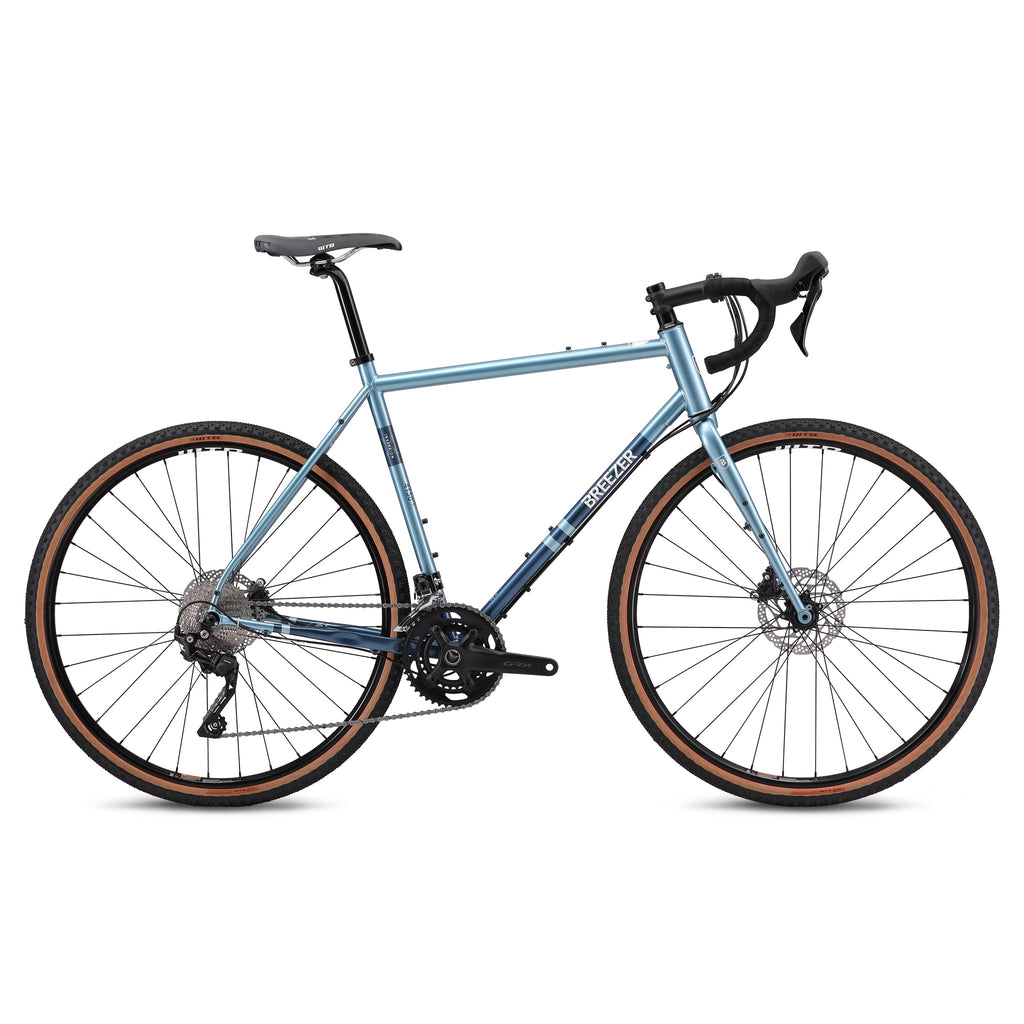

Color(s) | Pearl Aqua Blue |
Frame | Breezer butted-chromoly steel, 44mm headtube, English threaded BB, 700c, 142 x 12mm |
Fork | Chromoly disc, 1 1/8", rack / fender & side bottle mounts, 100 x 12mm thru-axle |
Crankset | Shimano GRX600 46-30T, 10 speed |
Bottom Bracket | 68mm english |
Front Derailleur | Shimano GRX400 |
Rear Derailleur | Shimano GRX400 |
Shifters | Shimano GRX400, 2x10 speed |
Cassette | Shimano HG500, 11-34T |
Chain | KMC, 10spd |
Wheelset | WTB STi23 TCS disc, 700c 32H |
Tires | WTB Raddler TCS tubeless ready 700x40, folding bead |
Tubes | 700x40 presta |
Brakeset | GRX400 Hydraulic Disc, 160mm rotors |
Brake Levers | GRX400 Hydraulic Disc |
Headset | FSA 1 1/8", No.10 internal, 36 degree ACB-sealed, 6.5mm aluminum top cover |
Handlebar | Breezer B-Road, 6061, 31,8 clamp, 125mm drop, 70mm, 16deg flare |
Stem | Breezer B-Road, 3D-forged 6061 stem body, +/-6 degree |
Tape | Selle San Marco Presa Corsa Dynamic |
Saddle | Selle San Marco Monza Full Start Up |
Seatpost | Breezer Alloy, 6061 alloy, 27.2mm diameter |
Weight | 12.78 kg / 28.17 lbs |
Due to COVID related supply chain issues component specification could change at any time without notice.

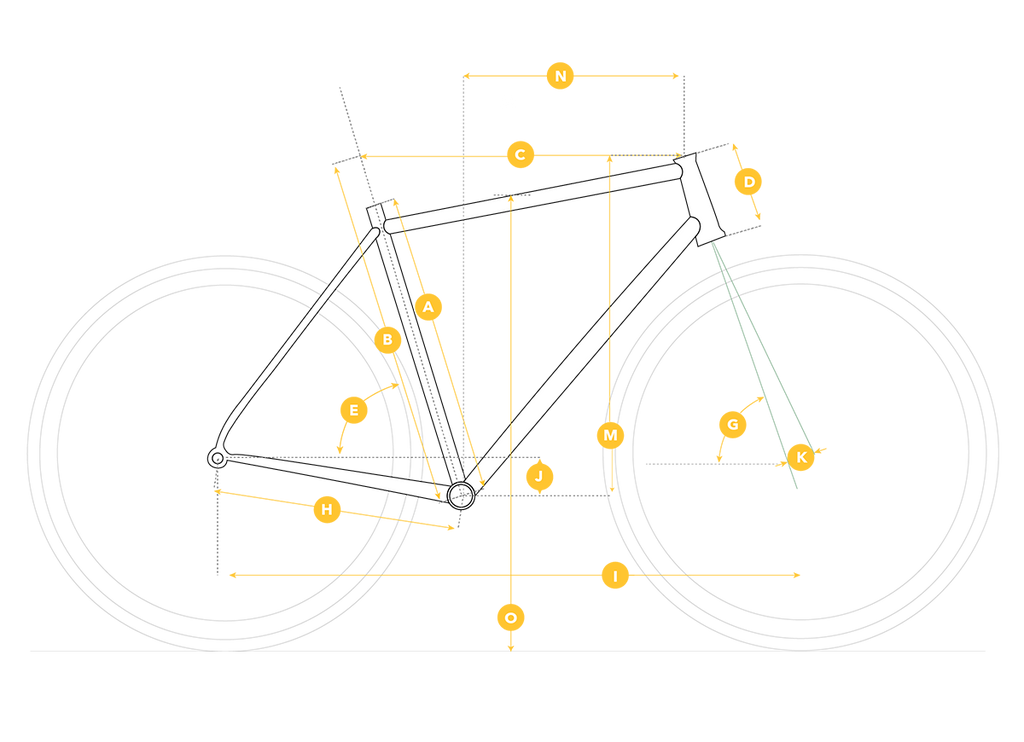

Geometry
Size(*Compact Frame) | XS | S | M | L | XL | XXL | |||||
Bike Size(*Compact Frame) | 49cm | 52cm | 54cm | 56cm | 58cm | 60cm | |||||
A | Seat Tube, Center to Top | 480 | 520 | 540 | 560 | 580 | 600 | ||||
C | Top Tube, Effective | 512 | 537 | 550 | 574 | 594 | 614 | ||||
D | Head Tube Length | 100 | 120 | 140 | 160 | 180 | 195 | ||||
E | Seat Tube Angle | 75° | 74° | 74° | 73° | 72.5° | 72° | ||||
G | Head Tube Angle | 68° | 70° | 70° | 70° | 71° | 71° | ||||
H | Chainstay Length | 435 | 435 | 435 | 435 | 435 | 435 | ||||
I | Wheelbase | 1036 | 1037 | 1050 | 1064 | 1069 | 1084 | ||||
J | Bottom Bracket Drop | 72 | 72 | 72 | 70 | 70 | 70 | ||||
K | Fork Offset | 50 | 50 | 50 | 50 | 50 | 50 | ||||
M | Stack | 521 | 548 | 567 | 584 | 606 | 620 | ||||
N | Reach | 373 | 380 | 388 | 395 | 402 | 412 | ||||
O | Standover | 752 | 784 | 802 | 821 | 842 | 858 | ||||
Stem mm | 80 | 80 | 90 | 90 | 100 | 110 | |||||
Handlebar Width cm | 40 | 42 | 44 | 46 | 48 | 48 | |||||
Crank mm | 165 | 170 | 172.5 | 172.5 | 175 | 175 | |||||
Wheel Size | 700 | 700 | 700 | 700 | 700 | 700 | |||||
Seat Post Diameter mm | 27.2 | 27.2 | 27.2 | 27.2 | 27.2 | 27.2 |
